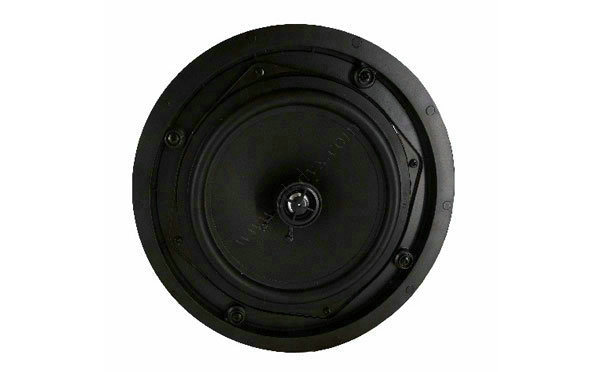

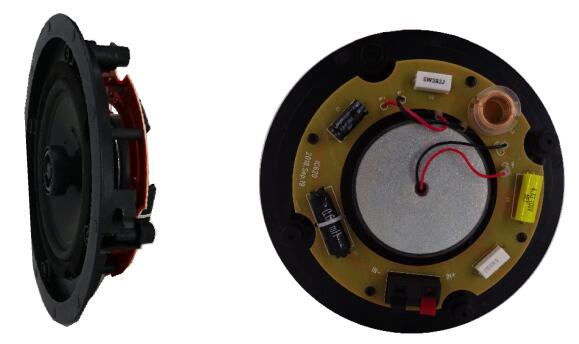

8" thin 70mm & 6.5" thin 70mm & 4" thin 65mm Thinner, less affected by ceiling depth
For the convenience of user space, design a thin ceiling speaker, not only thinner, but also more vivid!!
| IC-820 | IC-620 | IC-420 |
LF Unit | 8 inch * 1 | 6.5 inch * 1 | 4 inch * 1 |
HF Driver | 3/4 inch * 1 | 3/4 inch * 1 | 1/2 inch * 1 |
Impedance(AC) | 8Ω | 8Ω | 8Ω |
Output SPL | 85±3dB | 86±3dB | 83±3dB |
Resonant Freq.(FO) | 59±20Hz | 72±20Hz | 126±20Hz |
Freq. Range | FO~20KHz±3dB | FO~20KHz±3dB | FO~20KHz±3dB |
Rated Input Power | 40W | 30W | 20W |
Max Input Power | 80W | 60W | 40W |
Dimension(H*W*D) | 70*268*268mm | 70*233*233mm | 70*180*180mm |
Net Weight | 1.2kg | 1.1kg | 0.74kg |
Attachment | Low-prfile grill | Low-prfile grill | Low-prfile grill |
